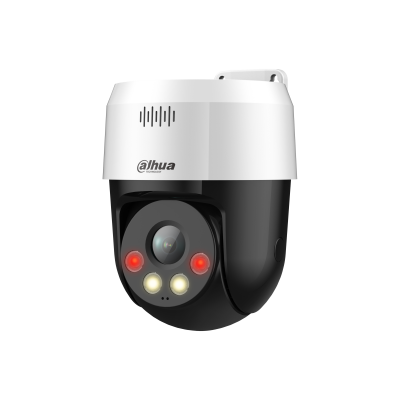

Dahua SD2A500HB-GN-A-PV-S2 5MP Full-color ip PT Camera

1.Please Note: 1).Original Dahua Global Version Camera,Camera supports firmware upgrade, 2).You can select the multi-languageand NTSC/PAL, Support English, Italian, Spanish, Russian, French, German, Portuguese, Polish, Korean, Czech, Dutch, Arabic. 3).The camera supports cloud services, and Imou APP supports remote video viewing and cloud storage. Dahua SD2A500HB-GN-A-PV-S2 5MP Full-color ip PT Camera   Camera Image Sensor 1/2.8″ CMOS Pixel 5MP Max. Resolution 2560 (H) × 1920 (V) ROM 128 MB RAM 128 MB Electronic Shutter Speed 1/3 s–1/100,000 s Scanning System Progressive Min. Illumination Color: 0.005 [email protected] B/W: 0.0005 [email protected] 0 lux (illuminator on) Illumination Distance 30 m (98.42 ft) (IR) 30 m (98.42 ft) (white light) Illuminator On/Off Control Manual; auto; off Illuminator Number 2 (IR light) 2 (White light) Lens Focal Length 4 mm Max. Aperture F1.6 Field of View H: 80.4° V: 58.1° D: 104.8° Close Focus Distance 0.3 m (0.98 ft) Iris Control Fixed DORI Distance Detect Observe Recognize Identify 77.4 m (253.94 ft) 31.0 m (101.71 ft) 15.5 m (50.85 ft) 7.74 m (25.39 ft) PTZ Pan/Tilt Range Pan: 0° to 345° Tilt: 0° to 80° Manual Control Speed Pan: 0.1°–74°/s Tilt: 0.1°–36.4°/s Preset Speed Pan: 62°/s Tilt: 36.3°/s Preset 300.0 Power-off Memory Yes Idle Motion Preset Smart Event IVS Tripwire; intrusion Human Detection Yes Active Deterrence Light Warning White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low Sound Warning Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s Video Video Compression H.264B; Smart H.265 ; H.264; H.265; MJPEG(Sub Stream); Smart H.264 Streaming Capability 2 streams Resolution 5M (2560 × 1920); 4M (2560 × 1440); 1080p (1920 × 1080); 960p(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) Video Frame Rate Main stream: 5M(1–20 fps), 4M/1080p/1.3M/720p (1–25/30 fps) Sub stream: D1/CIF (1–25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate H264: 512–8192 kbps H265: 233–7680 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes WDR DWDR HLC Yes White Balance Auto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light Gain Control Auto; manual Noise Reduction 2D NR; 3D NR Motion Detection Yes Image Rotation 180° S/N Ratio ≥ 55 dB Audio Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1 Network Network Port RJ-45 (10/100 Base-T) Network Protocol UDP; FTP; RTMP; IPv6; IPv4; IP Filter; DNS; RTCP; HTTP; NTP; SSL; DHCP; RTP; SMTP; HTTPS; TCP/IP; RTSP; DDNS; ARP Interoperability CGI; SDK; ONVIF (Profile S&T); P2P Streaming Method Unicast/Multicast User/Host 20 Storage Micro SD card (512 GB); FTP Browser IE: IE 7 and later versions; Chrome; Firefox; Safari Management Software DMSS Mobile Client iOS; Android Certification Certifications CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 Port Audio Input 1 channel (built-in mic) Audio Output 1 channel (built-in speaker) Two-way Audio Yes Alarm Linkage Capture; preset; recording; audio; sending email Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection Audio I/O 1/1 Power Power Supply 12 VDC/1.5 A ± 10% PoE (802.3af) Power Consumption Basic: 4 W Max.: 12.95 W (illuminator PT speaker heating glass) Environment Operating Temperature –30 °C to 55 °C (–22 °F to 131 °F) Operating Humidity ≤ 95% Protection IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection Structure Product Dimensions 140.5 mm × Φ111.0 mm (5.53″ × Φ4.45″) Net Weight 0.5 kg (1.10 lb) Gross Weight 1 kg (2.20 lb) The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
